KBK Overhung And Extending Crane Bridge KBK Crane Overhead Rail System
Product Description
The suspension beam and telescopic beam crane of the KBK light crane system can move the load outside the crane track. This solution uses space more efficiently, allowing you to use the available space with the desired efficiency. Our solutions meet specific needs, including: the overhanging beam crane equipped on the main beam of the crane can exceed the width of the crane track, the telescopic beam crane is composed of a fixed section and a crane section, and the crane section can extend in two directions, the crane girder can exceed the track span by up to 2500 mm.
Drawing and Specification
| SWL / Load Capacity (kg) | Span (m) | Max Lifting height (m) | Class |
| 50 | 3~10.5 | 3~9 | A3~A5 |
| 100 | 3~10.5 | 3~9 | A3~A5 |
| 150 | 3~10.5 | 3~9 | A3~A5 |
| 200 | 3~10.5 | 3~9 | A3~A5 |
| 300 | 3~10.5 | 3~9 | A3~A5 |
| 500 | 3~10.5 | 3~9 | A3~A5 |
| 500~2000 | 3~10.5 | 3~9 | A3~A5 |
| Customized | Customized | Customized | N/A |
Product Details
1. light weight, safe and reliable
2. cost-effective and installation cost is low
3. widely used, outstanding function
4. lifting height is high, large span, from the weight
5. Modular design. High production efficiency, short supply time. Maintenance-free, low failure rate.
Product Advantage
1. Efficient use of workshop space (for example, if the workshop area is expanded in the future, the new area can be covered without additional crane rails)
2. Can run under exhaust ducts, heating ducts and cables
3. Depending on the design, the main beam can extend out of the crane track width in one or two directions
4. It can be used to accurately lift and place loads in inconvenient areas (for example, between pillars and uprights)
About Us
MAGICART is a leading manufacturer and service provider of cranes and material handling equipment, dedicated to the R & D, design, manufacturing, installation and service of cranes and material handling technology. MAGICART owns comprehensive products, reliable quality, excellent performance, efficient service. The products are distributed in more than 30 countries and regions around the world. It is widely used in more than 20 professional fields, such as equipment manufacturing, logistics, energy, electric power, shipbuilding, metallurgy, ports, infrastructure, metal processing, hydropower stations, automobile manufacturing, and aerospace.
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Overhead Crane, Gantry Crane, Mobile Gantry Crane, Shipyard Crane,Electric Hoist, Winch
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Product Tags:
|
|

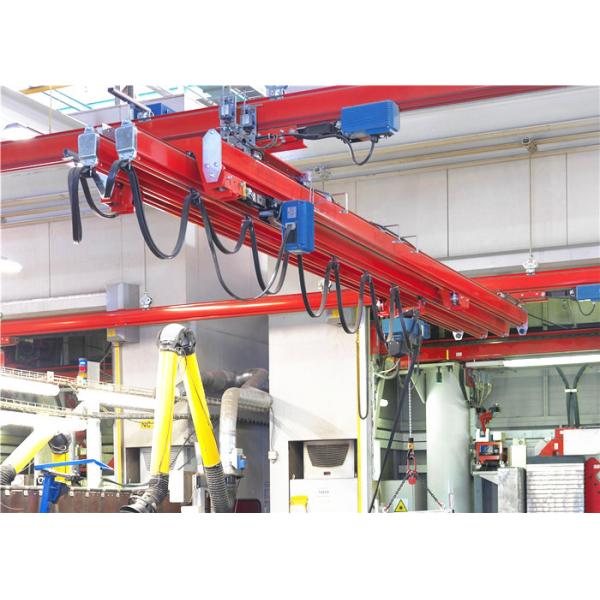

Overhung And Extending Bridge Kbk Cranes Overhead Rail System Images
|
